$397.00
Specification
| Processor System | Onboard Intel Core Ultra series processor, TDP 28 W |
| EFI BIOS | |
| Memory | 2 x DDR5 SO-DIMM, total maximum 96 GB |
| Storage | 1 x M.2 M-Key 2280 (NVMe PCIe 4.0 x4 protocol) |
| 1 x SATA3.0 interface, 2Pin 5V power supply | |
| Display | 2 x HDMI2.1 interface, support 4K@60Hz |
| 2 x Type-C interface, supports DP 4K@60Hz and USB3.0 | |

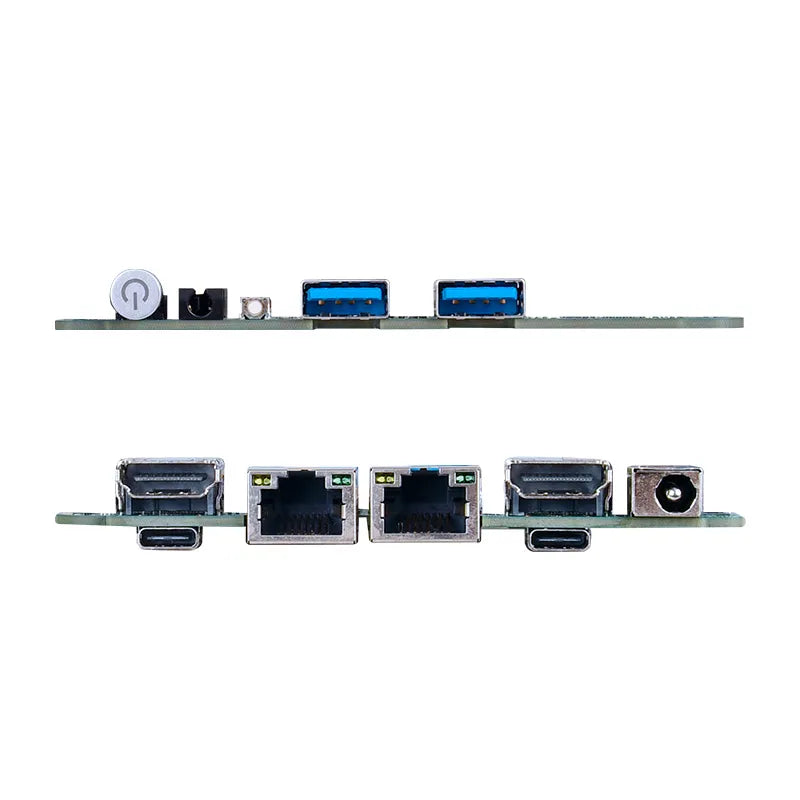

| Board Edge I/O interface | Power button, 2-in-1 audio jack, reset button, 2 x USB3.0 |
| DC JACK, 2 x HDMI, 2 x Type-C | |
| Dual network (2 x Intel i226 network) | |
| Extended interface/function | External TPM2.0 is optional, not available by default. The default is CPU built-in TPM2.0 |
| 1 x M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) | |
| 1 x RS232 pin header, pitch 2.0mm | |
| 2 x USB2.0 pin header, 2x5Pin, pitch 2.0mm | |
| 1 x 4Pin PWM CPU FAN | |
| 1 x CIR (none by default, reserved function, software debugging required) | |
| Power Supply | DC 12-19V, 90W and above |
| Working Environment | Working temperature: -20ºC ~ +60ºC; Working humidity: 5% ~ 90% |
| Storage temperature: -40ºC ~ +85ºC; Storage humidity: 5% ~ 90% | |
| Operating System | Windows10, Windows11, Linux |
| Size | 100 x 100mm |
| Net Weight | Approximately 120g without radiator, approximately 220g with radiator |
