$66.00

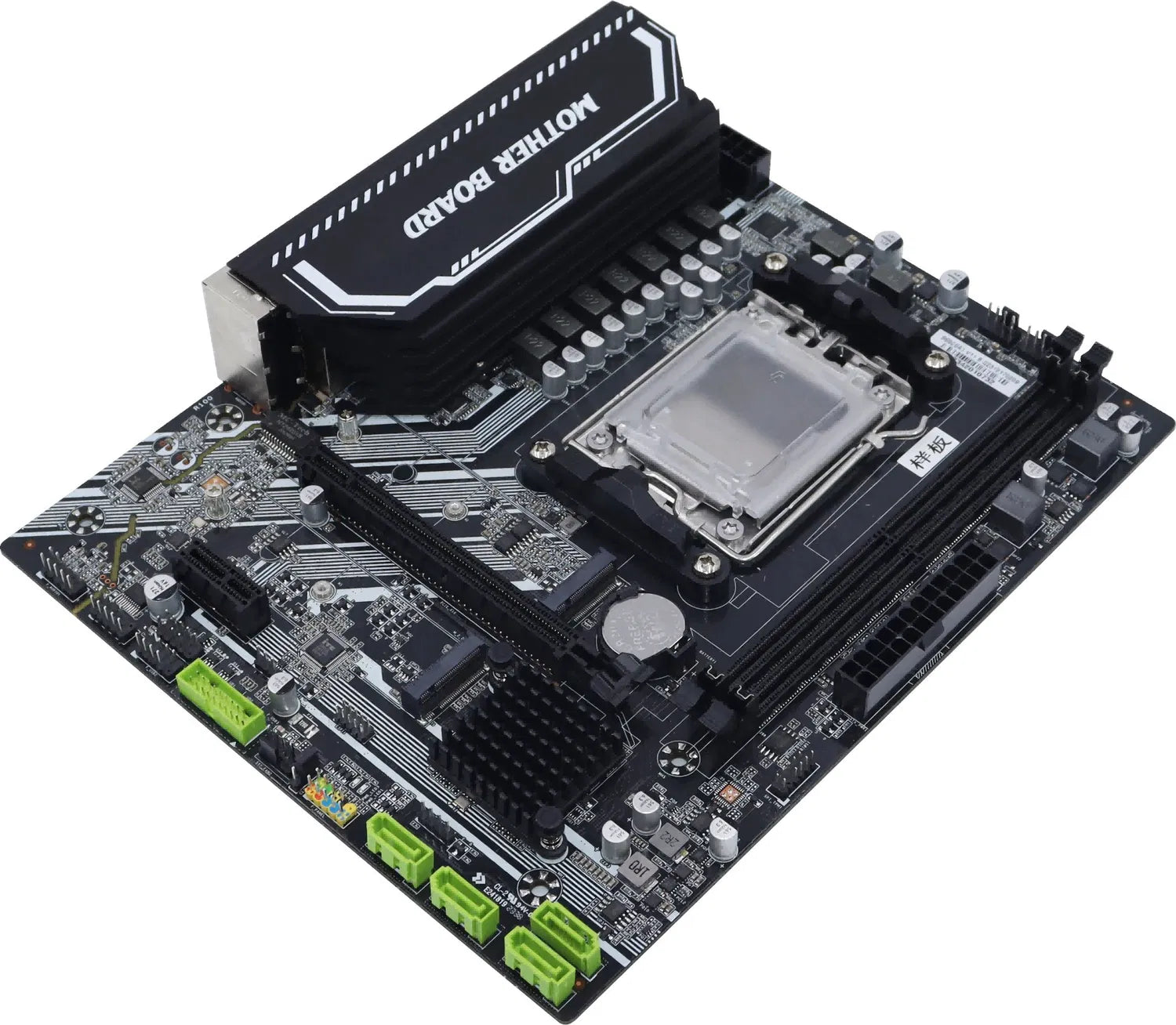

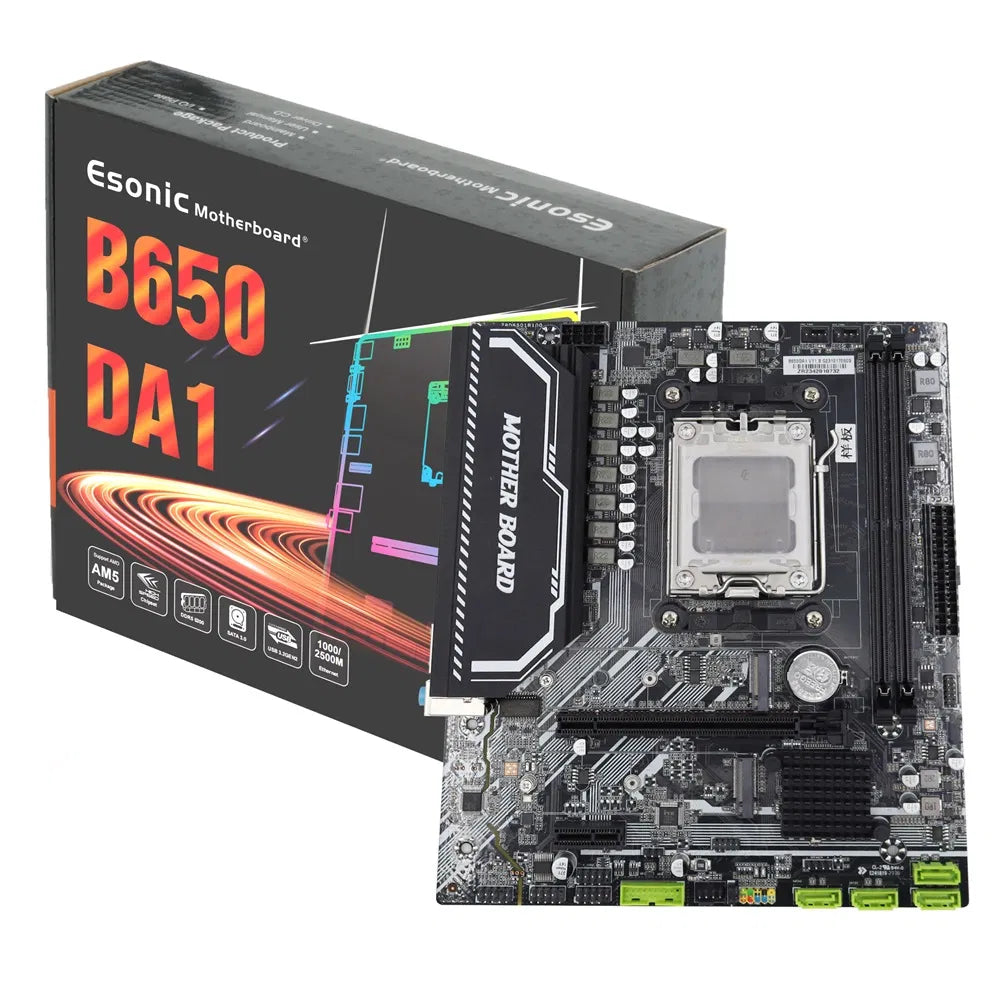

| Product name | Esonic B650 DDR5 5200mHZ 96GB motherboard AMD AM5 Socket MATX mainboard for gaming computer with TypeC, DP |
| Brand | Esonic motherboard |
| Chipset | B450 Chipset |
| Processor Support |
AMD® socket AM5
SupportAMD® Ryzen 7000 Serises processors
|
| Memory Support |
2*DDR5 4800/5200 UDIMM MAX 96GB
(For more information on compatible components, please check with manufacturer)
|
| LAN |
Support Realtek RTL8125B 2500M Network
optional Realtek RTL8111H 1000M Network
|
| Audio | Support Realtek® ALC897 High Definition Audio |
| Storage | 4*SATA3.0 port 6Gb/s |
| M.2 |
Support 2*M.2_SSD (M key NVME 2242/2280)
Support 1.M.2_WIFI (E key)
|

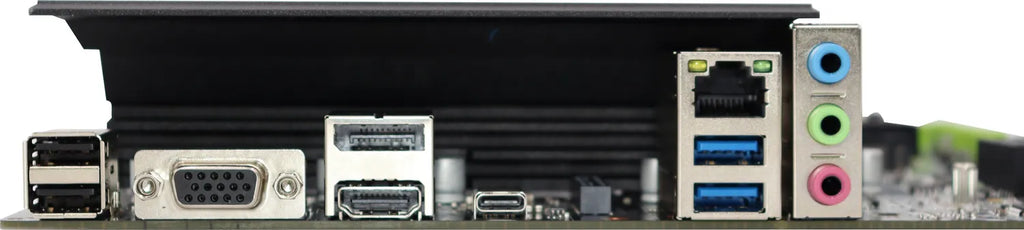

| Back panel |
1*HD MI port
2*USB2.0 port(optional KB_MS)
1*VGA port(optional HDMI)
2*USB3.2Gen1 port
1*AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)
1*DP port
1*TYPE_C port
1*M.2_WIFI slot
1*RJ45 port
|
| On-Board Pinheaders / Connectors |
1*COM connector
1*CLR_CMOS connector
1*ATX_24P Power connector
1*F_PANEL connector
1*ATX_8P Power connector
1*ESPI connector
1*SPEAKER connector
1*TPM connector(optional TPM module)
1*F_AUDIO connector
1*F_USB3.0 connector
support 2*USB3.0 port
2*F_USB2.0 connector
support 4*USB2.0 port
2*SYS_FAN connector
1*CPU_FAN connector
|
| SLOTS |
1* PCI Express X16 Gen 4.0 slot
1* PCI Express X1 Gen 3.0 slot
|
| Form Factor |
Micro-ATX ( 23 cm X 19.2 cm)
|
| Accessories |
2* 4-pin SATA data cable
1* I/O Backboard 1* Drives installed CD |
